Then, with eCS installation or pure lvm you will see

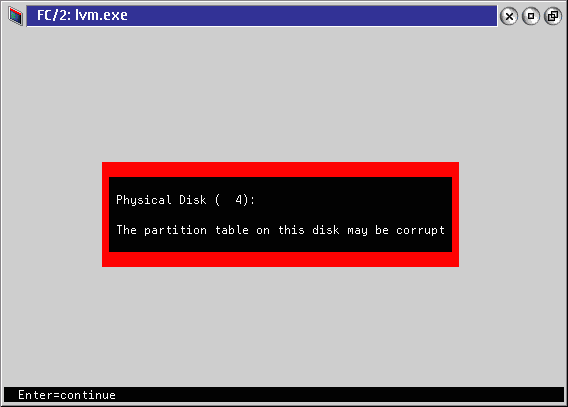

1
run LVM and see message about corrupt partition table, press Enter

2
message for USB-drive, indeed it should be drive not ready message, press Enter

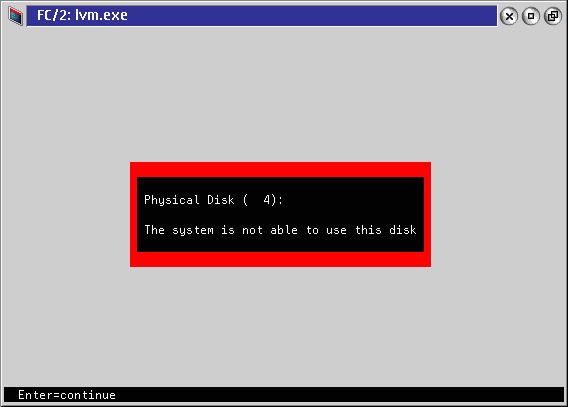

3
Quite reasonable message, but indeed system can't use disk 1 as well.
Press Enter

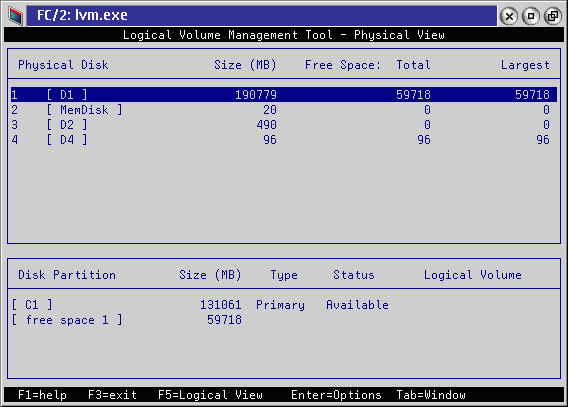

4
Press F5

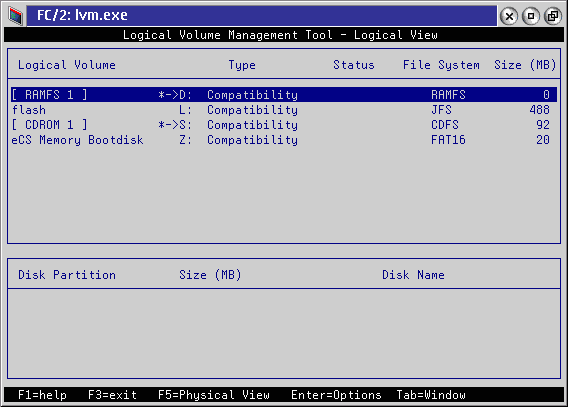

5
Press Tab

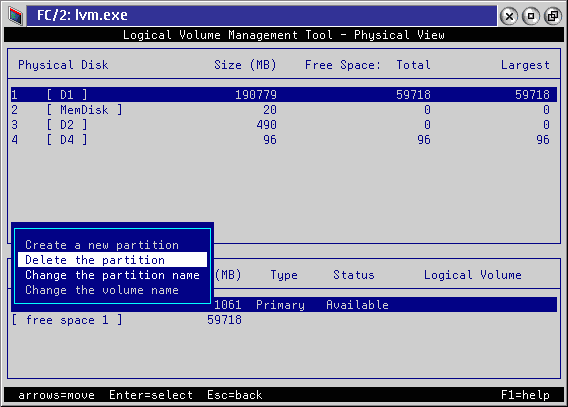

6
Press Enter

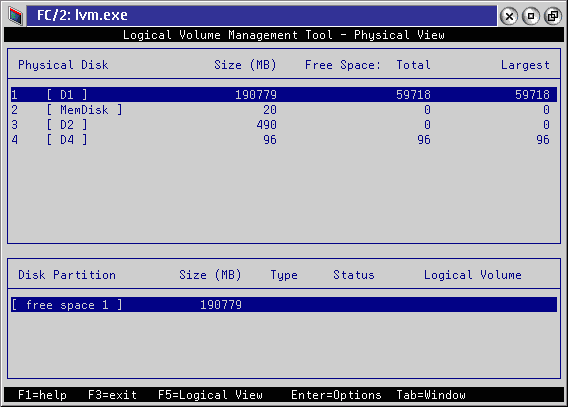

7
Look up and bottom, press Tab

8
press F3

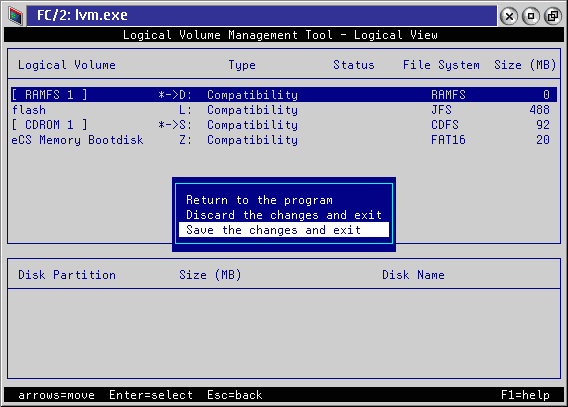

9
Select "Save changes", press Enter

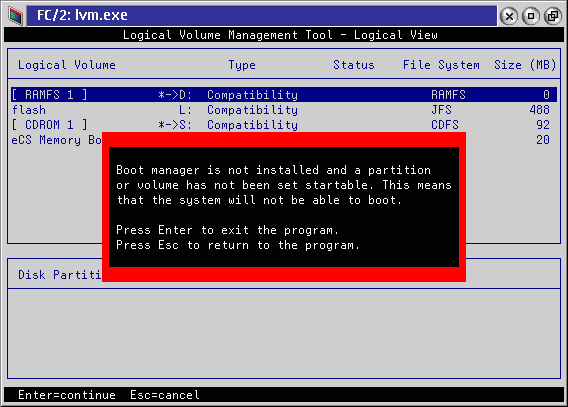

10
Look at last LVM's message, leave LVM
And now, run LVM again. Nothing is changed, goto to picture number 1
